Scalextric Track

Scalextric Track Pieces

Scalextric Track can be configured to create the wildest slot car track you can dream of or reproduce any number of famous real world racing circuits. It is super easy and simple to expand upon any track that came with your slot car set. Scalextric offers Track Extension Packs consisting of specific track parts and pieces.  Track packs consisting of hairpin turns, jumps, side swipe sections, and regular old straights and corners.

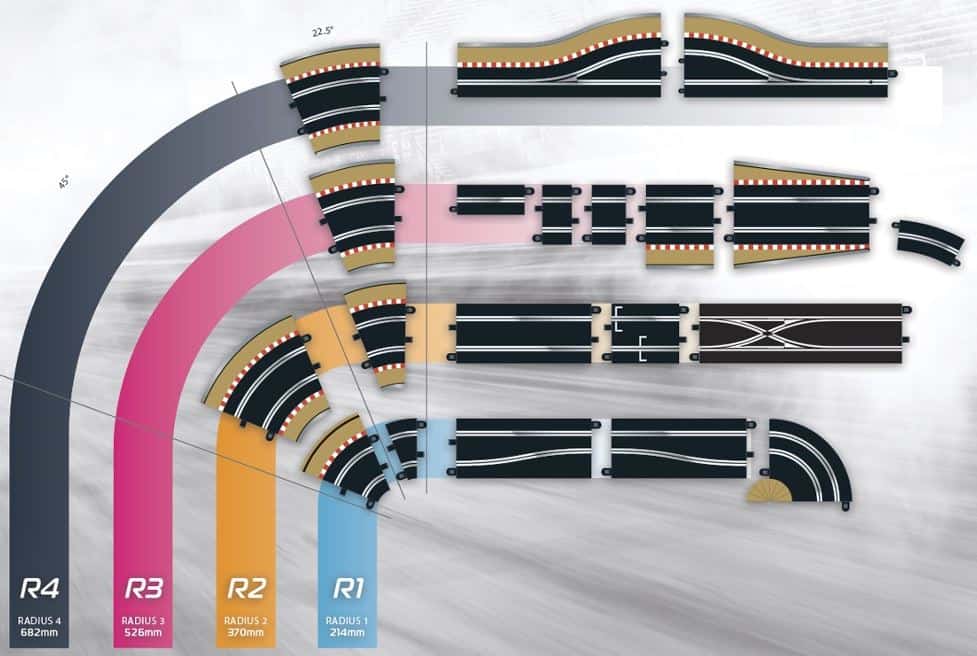

If your looking to follow a specific track layout plan that you have found here on Slot Track Pro or one you have designed yourself, you will want to learn about the specific track pieces. Scalextric offers four different curve radiuses. Some radiuses offer multiple track components. These are useful if you are creating a multi lane track. While the straight track components will be the same for any lane, you will need different radius curves to line up next to other lanes. Radius 1 is the tightest of the corners and continues going out through radius 4. You can refer to the featured image on this page to see this concept displayed. If your not doing multi lanes then you just have additional options for creating different corners as you wish. A nice hairpin curve here, or a sweeping chicane there. You have many options to choose from.




Borders can be added to all your curves and some of the shorter straights to provide extra room for those fast cars that tend to get a little loose in the corners. There are outside corners as well as inside corners and specific parts for each radius of curve so pay close attention to the part numbers you need.

We’ll detail out all the Scalextric slot car track pieces with part numbers and images below.

Scalextric Radius 1 Corners

Radius 1 Curve 22.5° – C8278
Radius 1 Curve 45° – C8202
Radius 1 Curve Outer Borders 45° – C8240
Radius 1 Curve Inner Borders 180° – C8279

Scalextric Radius 1 Hairpin and Track Packs

Radius 1 Hairpin Curve 90° – C8201
Track Extension Pack 1 with racing curves, borders and barriers – C8510
Track Extension Pack 3 with ramps, straight track, hairpin curves, side swipes, borders & barriers – C8512
Ultimate Track Extension Pack – C8514

Scalextric Radius 2 Curves and Borders

Radius 2 Curve 22.5° – C8234
Radius 2 Curve 45° – C8206
Radius 2 Curve Outer Borders 22.5° – C8239
Radius 2 Curve Inner Borders 22.5° – C8280

Scalextric Radius 2 Borders and Track Extension Packs

Radius 2 Curve Outer Borders 45° – C8228
Radius 2 Curve Inner Borders 45° – C8225
Track Extension Pack 6 – 8x R3 Curves – C8555
Track Extension Pack 7 – 4x 350mm Straights and 4x R3 Curves – C8556

Scalextric Radius 3 Curves

Radius 3 Curve 22.5° – C8204
Radius 3 Curve Outer Borders 22.5° – C8224
Radius 3 Curve Inner Borders 22.5° – C8281
Single Lane Radius 3 Curve 22.5° – C7017

Scalextric Radius 4 Curves and Borders

Radius 4 Curve 22.5° – C8235
Radius 4 Curve Outer Borders 22.5° – C8238
Radius 4 Curve Inner Borders 22.5° – C8282
Track Extension Pack 2 with ramps, standard straights, side swipes, borders & barriers – C8511

Scalextric Banked Curves and Accessories

Radius 2 Banked Curve – 10° Banked Curve 45° x2 – C8296
Radius 3 Banked Curve – 10° Banked Curve 45° x2 – C8297
Track Supports & Clips – C8226
Barriers (Guard Rails) & Clips – C8212

Scalextric Straights and Track Extension Packs

Standard Straight 350mm – C8205
Track Extension Pack 4 – 4x 350mm Straights – C8526
Track Extension Pack 5 – 8x 350mm Straights – C8554
Side Swipe Straights – C8246

Scalextric Half, Quarter, and Short Straights

Half Straight 175mm – C8207
Half Straight Borders 175mm  C8223
Quarter Straight 87mm – C8200
Short Straight 78mm – C8236

Scalextric Starting Grid and Pit Lanes

Starter Grid 175mm – C7018
Pit Lane Track Includes Sensor (Right Hand) – C7015
Pit Lane Track Includes Sensor (Left Hand) – C7014
Single Lane Half straight 175mm – C7016

Scalextric Lane Changer and Crossovers

Straight Lane Change Track – C7036
Lead in / Lead Out Borders – C8233
Straight Crossover 90° – C8210
Elevated Crossover – C8295


There are a few more digital components and track scenery items available. Components such as power base upgrades, lap counters, and micro Scalextric track. Everything is also available via Scalextric direct. They offer free shipping to the US for certain size orders.

Send us a photo of your slot car track! We would love to share it on our site for all to see. If you have any questions about adding on to your slot car track or any of the track designers feel free to contact us.
